8-bit parallel in/out Darlington source driver with latch and enhanced hold time. Features 200mA high and low level output current, 400mA total output current, and 1MHz operating frequency. Operates with supply voltages from 4.5V to 13.2V and input voltages from 4.5V to 13.2V. This non-inverting, D-type latch driver is housed in a 20-PDIP package and operates across a temperature range of -40°C to 85°C. RoHS compliant and lead-free.
Frequency1 MHz
PackageN
Current4.8mA
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments TLC59213AIN technical specifications.
General
| Package/Case | N |
| High Level Output Current | 200mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Logic Function | D-Type, Latch |
| Low Level Output Current | 200mA |
| Max Input Voltage | 13.2V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 13mA |
| Max Supply Voltage | 13.2V |
| Min Supply Voltage | 4.5V |
| Number of Circuits | 1 |
| Number of Input Lines | 8 |
| Number of Output Lines | 8 |
| Number of Outputs | 8 |
| Operating Frequency | 1 MHz |
| Output Current | 400mA |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 250ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TLC59213A |
| Supply Current | 4.8mA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLC59213AIN Datasheet
Download the complete datasheet for Texas Instruments TLC59213AIN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

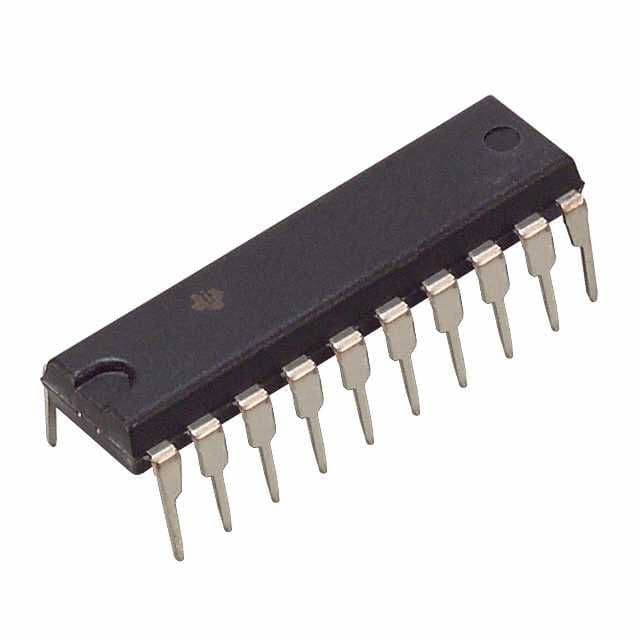

Product Images
