Frequency25MHz
PackageHTSSOP EP
Current50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TLC5930PWP technical specifications.
General
| Package/Case | HTSSOP EP |
| Frequency | 25MHz |
| High Level Output Current | -1mA |
| Lead Free | Lead Free |
| Low Level Output Current | 1mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Power Dissipation | 3.7W |
| Max Supply Current | 50mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Outputs | 12 |
| Output Current | 40mA |
| Output Voltage | 17V |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Power Dissipation | 3.7W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 50mA |
| Weight | 0.00346oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLC5930PWP Datasheet
Download the complete datasheet for Texas Instruments TLC5930PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

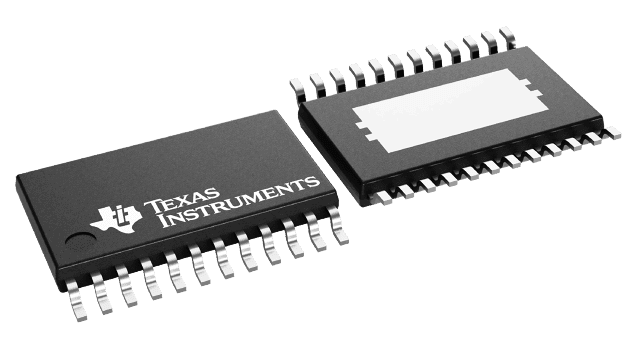

Product Images
