16-channel LED driver IC featuring grayscale PWM control and EEPROM dot correction. Operates with a 3V to 5.5V supply voltage and a 30MHz operating frequency. Delivers up to 120mA output current per channel with a 17V output voltage. Packaged in a 28-pin HTSSOP, this lead-free, RoHS-compliant component is suitable for operation between -40°C and 85°C.
Frequency30MHz
PackageHTSSOP
Current60mA
Quick Jump:
Technical Specifications
Texas Instruments TLC5940PWPRG4 technical specifications.
General
| Package/Case | HTSSOP |
| Frequency | 30MHz |
| High Level Output Current | -1mA |
| Lead Free | Lead Free |
| Low Level Output Current | 1mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 60mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Number of Outputs | 16 |
| Number of Segments | 16 |
| Operating Frequency | 30 MHz |
| Output Current | 120mA |
| Output Current per Channel | 120mA |
| Output Voltage | 17V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 60mA |
| Weight | 0.00418oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLC5940PWPRG4 Datasheet
Download the complete datasheet for Texas Instruments TLC5940PWPRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

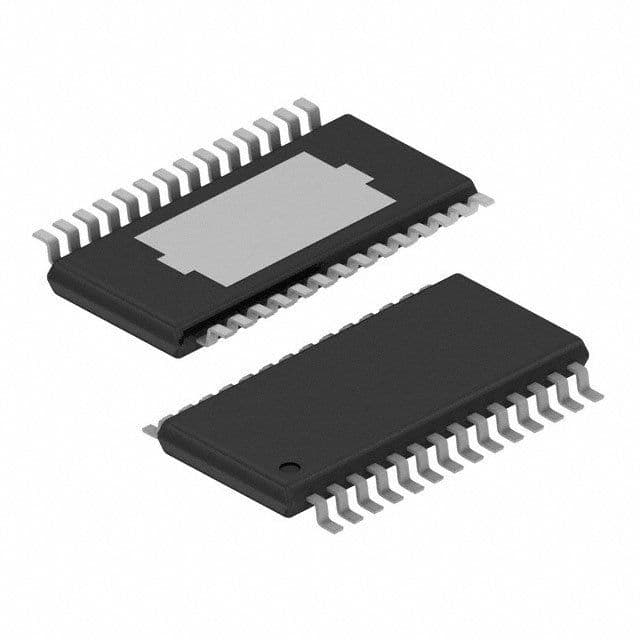

Product Images
