TLC5945PWPR
16-channel LED driver w/dot correction & grayscale PWM control & no delay 28-HTSSOP -40 to 85
Frequency30MHz
PackageHTSSOP EP
Current60mA
Quick Jump:
Technical Specifications
Texas Instruments TLC5945PWPR technical specifications.
General
| Package/Case | HTSSOP EP |
| Frequency | 30MHz |
| High Level Output Current | -1mA |
| Lead Free | Lead Free |
| Low Level Output Current | 1mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 60mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Number of Outputs | 16 |
| Number of Segments | 16 |
| Output Current | 80mA |
| Output Voltage | 17V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 60mA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLC5945PWPR Datasheet
Download the complete datasheet for Texas Instruments TLC5945PWPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

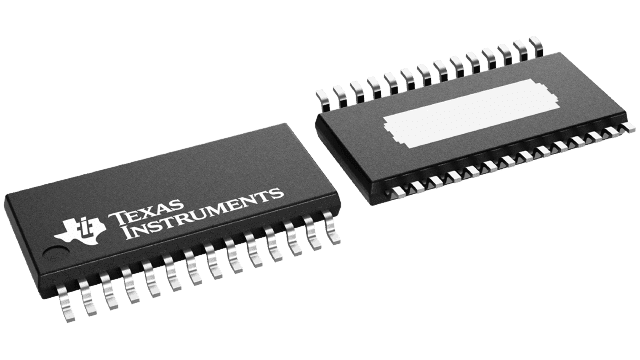

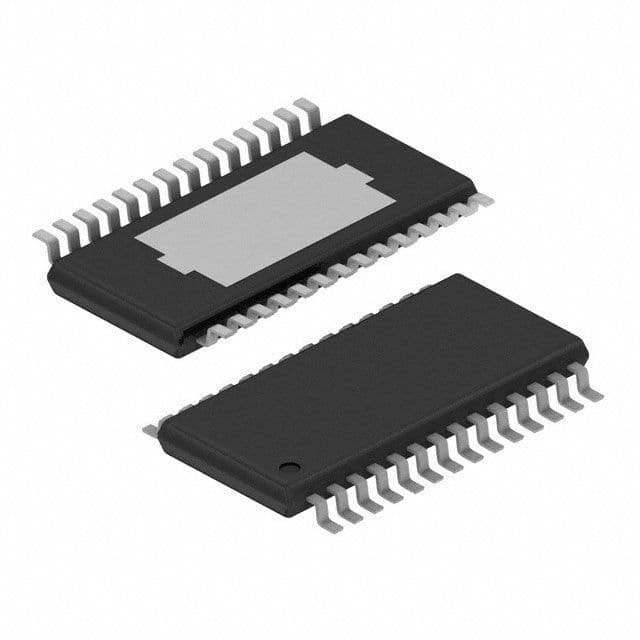

Product Images
