Frequency30MHz
PackageHTSSOP
Current45mA
Power3.958W
Quick Jump:
Technical Specifications
Texas Instruments TLC5946PWPG4 technical specifications.
General
Package/Case
HTSSOP
Frequency
30MHz
High Level Output Current
-1mA
Lead Free
Lead Free
Low Level Output Current
5mA
Max Input Voltage
5.5V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
40mA
Max Power Dissipation
3.958W
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Number of Outputs
16
Number of Segments
16
Output Voltage
17V
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
3.958W
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
45mA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLC5946PWPG4 Datasheet
Download the complete datasheet for Texas Instruments TLC5946PWPG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

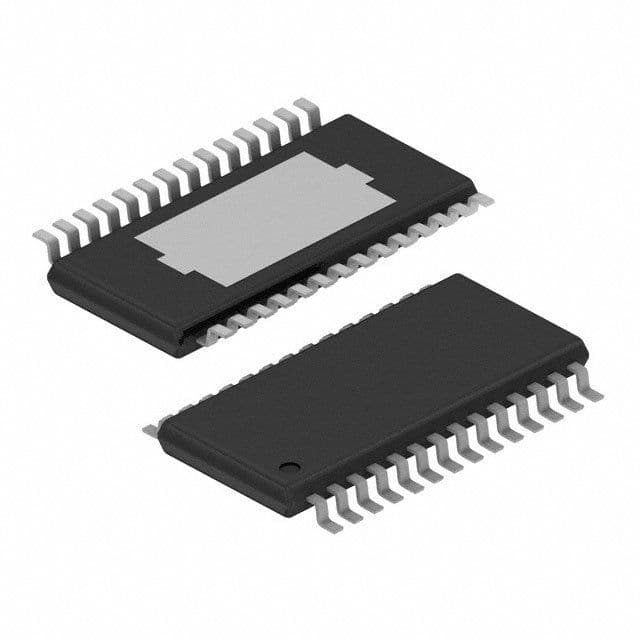

Product Images
