Texas Instruments
TLC5951RHAT

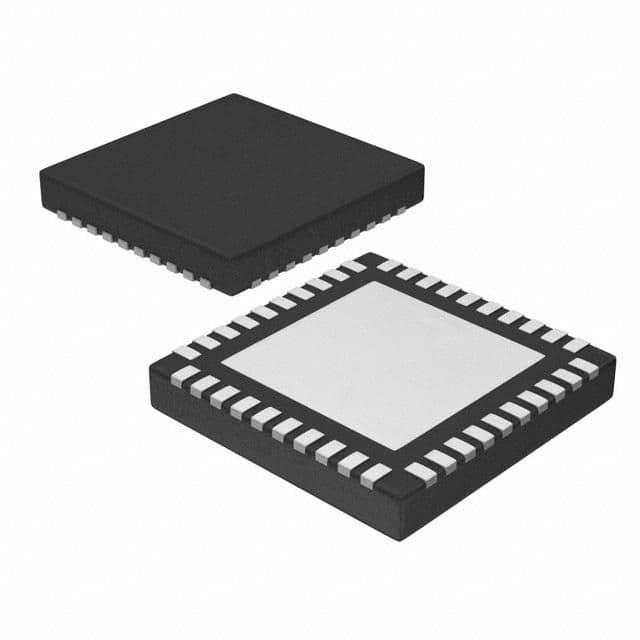

24-ch 12-bit PWM LED driver w/7-bit dot correction 8-bit global brightness 40-VQFN -40 to 85
Frequency30MHz
PackageVQFN
Current55mA
Power2.139W
Quick Jump:
Technical Specifications
Texas Instruments TLC5951RHAT technical specifications.
General
| Package/Case | VQFN |
| Frequency | 30MHz |
| High Level Output Current | -1mA |
| Lead Free | Lead Free |
| Low Level Output Current | 1mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2.139W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Number of Outputs | 24 |
| Operating Frequency | 30 MHz |
| Output Current | 40mA |
| Output Voltage | 15V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Dissipation | 2.139W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 55mA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLC5951RHAT Datasheet
Download the complete datasheet for Texas Instruments TLC5951RHAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
