Texas Instruments
TLC5970RHPT
3-Channel , 12-Bit PWM LED Driver w/ Buck DC-DC Converter and Differential Signal Interface 28-VQFN -40 to 85
Frequency20MHz
PackageVQFN
Current35mA
Power4.149W
Quick Jump:
Technical Specifications
Texas Instruments TLC5970RHPT technical specifications.
General
| Package/Case | VQFN |
| Frequency | 20MHz |
| High Level Output Current | -30mA |
| Lead Free | Contains Lead |
| Low Level Output Current | 30mA |
| Max Input Voltage | 36V |
| Min Input Voltage | 10V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 4.149W |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 10V |
| Number of Outputs | 3 |
| Operating Frequency | 20 MHz |
| Output Current | 150mA |
| Output Voltage | 17V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Dissipation | 4.149W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 35mA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLC5970RHPT Datasheet
Download the complete datasheet for Texas Instruments TLC5970RHPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

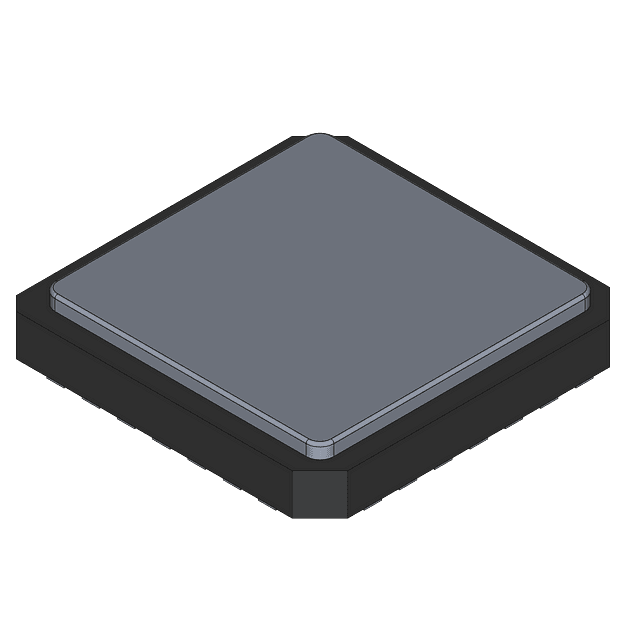

Product Images
