Texas Instruments
TLV1543CFNG3
10-Bit 200 kSPS ADC Ser. Out, Built-In Self-Test Modes, Inherent S&H, Pin Compat. w/TLC1543, 11 Ch. 20-PLCC
PackagePLCC
Power2.64mW
Quick Jump:
Technical Specifications
Texas Instruments TLV1543CFNG3 technical specifications.
General
Package/Case
PLCC
Conversion Rate
38KS/s
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
3V
Nominal Supply Current
800uA
Number of Bits
10
Number of Channels
11
Number of Converters
1
Number of Inputs
11
Operating Supply Voltage
5.5V
Package Quantity
46
Packaging
Rail/Tube
Power Consumption
2.64mW
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
38000S/s
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLV1543CFNG3 Datasheet
Download the complete datasheet for Texas Instruments TLV1543CFNG3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

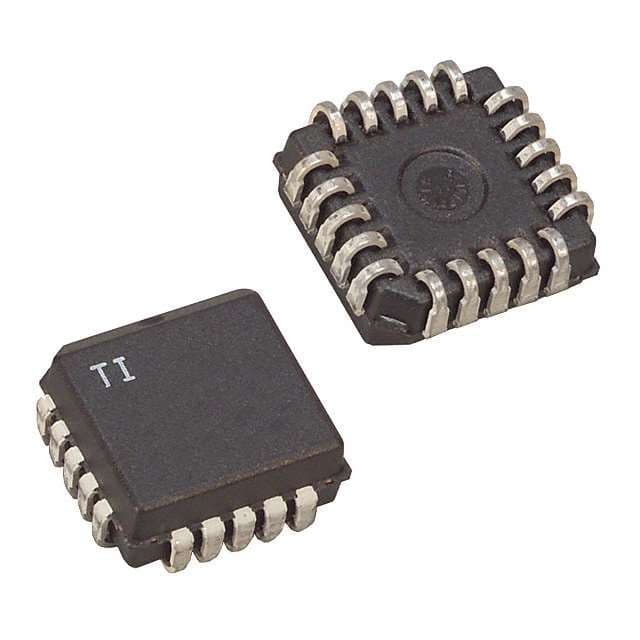

Product Images
