8-channel, 10-bit analog-to-digital converter (ADC) with a 1.25 MSPS sampling rate. Features single-ended inputs, parallel interface, and 1 LSB integral nonlinearity. Operates from a 2.7V to 5.5V supply, consuming a maximum of 43mW. Offers 60dB signal-to-noise ratio and 63dB spurious-free dynamic range. Packaged in a 32-TSSOP, this RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageTSSOP
PolarityUnipolar
Power12mW
Quick Jump:
Technical Specifications
Texas Instruments TLV1578IDAG4 technical specifications.
General
Package/Case
TSSOP
Conversion Rate
1250KS/s
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
43mW
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Nominal Supply Current
7mA
Number of A/D Converters
1
Number of Analog Inputs
8
Number of Bits
10
Number of Channels
8
Number of Converters
1
Number of Inputs
8
Operating Supply Voltage
5.5V
Package Quantity
46
Packaging
Rail/Tube
Polarity
Unipolar
Power Consumption
12mW
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
1250000S/s
Signal to Noise Ratio (SNR)
60dB
Spurious-free dynamic range (SFDR)
63dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLV1578IDAG4 Datasheet
Download the complete datasheet for Texas Instruments TLV1578IDAG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

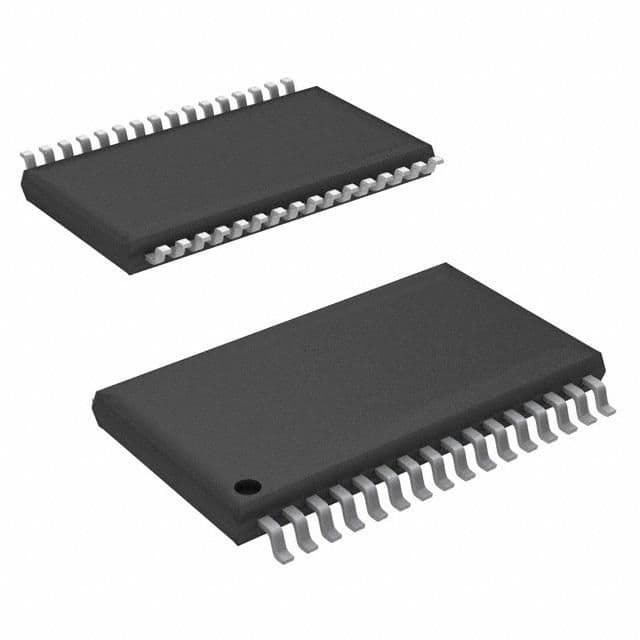

Product Images
