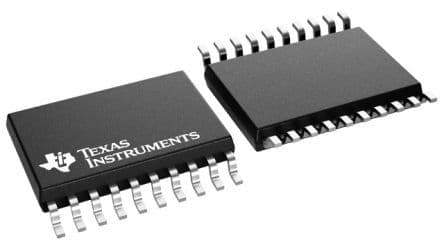

12-bit Analog-to-Digital Converter (ADC) with a 200 kSPS sampling rate. Features 8 single-ended analog inputs and a unipolar input type. Offers SPI serial interface, 1 LSB integral nonlinearity, and 75dB signal-to-noise ratio. Operates from a 2.7V to 5.5V supply voltage with a low power consumption of 3.3mW. Packaged in a 20-TSSOP, this RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageTSSOP
Current2.1mA
PolarityUnipolar
Power3.3mW
Quick Jump:
Technical Specifications
Texas Instruments TLV2548IPW technical specifications.
General
| Package/Case | TSSOP |
| Conversion Rate | 200KS/s |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 3.3mW |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 8 |
| Number of Bits | 12 |
| Number of Channels | 8 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 8 |
| Operating Supply Voltage | 3.3V |
| Output Voltage | 2.4V |
| Package Quantity | 70 |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Power Consumption | 3.3mW |
| Power Dissipation | 977mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 200KS/s |
| Signal to Noise Ratio (SNR) | 75dB |
| Spurious-free dynamic range (SFDR) | 84dB |
| Supply Current | 2.1mA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
