24-bit stereo CODEC featuring 10 analog inputs and 7 analog outputs. Supports I2C, Serial, SPI, and 2-Wire interfaces with a sampling rate of 96 kS/s and 92dB SNR. Operates from a 1.525V to 1.95V supply, consuming 14mW. Packaged in a VFBGA with a temperature range of -40°C to 85°C.
PackageVFBGA
Power14mW
Quick Jump:
Technical Specifications
Texas Instruments TLV320AIC3106IZQE technical specifications.
General
Package/Case
VFBGA
Interface
I2C, Serial, SPI, 2-Wire
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.95V
Min Supply Voltage
1.525V
Number of A/D Converters
2
Number of ADC Channels
2
Number of Analog Inputs
10
Number of Analog Outputs
7
Number of D/A Converters
2
Number of DAC Channels
2
Package Quantity
360
Packaging
Tray
Power Consumption
14mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
96KS/s
Signal to Noise Ratio (SNR)
92dB
Type
General Purpose
Weight
0.001937oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLV320AIC3106IZQE Datasheet
Download the complete datasheet for Texas Instruments TLV320AIC3106IZQE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

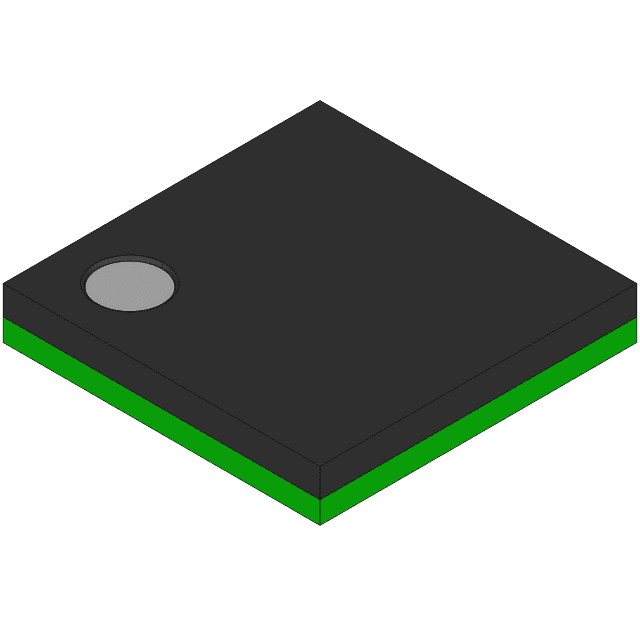

Product Images
