Texas Instruments
TLV320AIC3106IZQER
Low-Power Stereo CODEC with 10 Inputs, 7 Outputs, HP Amplifier and Enhanced Digital Effects 80-BGA MICROSTAR JUNIOR -40 to 85
PackageVFBGA
Power14mW
Quick Jump:
Technical Specifications
Texas Instruments TLV320AIC3106IZQER technical specifications.
General
Package/Case
VFBGA
Interface
I2C, Serial, SPI, 2-Wire
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.95V
Min Supply Voltage
1.525V
Number of A/D Converters
2
Number of ADC Channels
2
Number of Analog Inputs
10
Number of Analog Outputs
7
Number of D/A Converters
2
Number of DAC Channels
2
Package Quantity
2500
Packaging
Tape and Reel
Power Consumption
14mW
Radiation Hardening
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
96KS/s
Signal to Noise Ratio (SNR)
92dB
Type
General Purpose
Weight
0.001937oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLV320AIC3106IZQER Datasheet
Download the complete datasheet for Texas Instruments TLV320AIC3106IZQER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

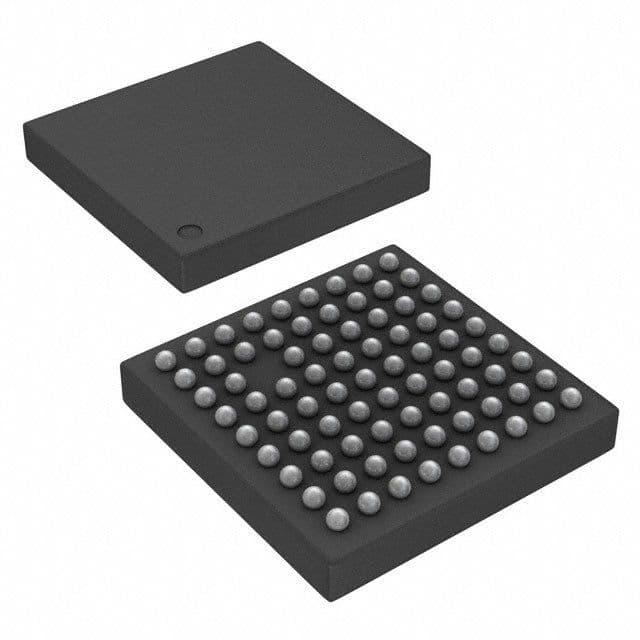

Product Images
