TLV3701CDBVT

Single Nanopower Comparator, 1.25-16V, 88dB CMRR, 250pA Ib, SOT-23

Single channel, general-purpose comparator featuring nanropower operation and high voltage capability. This surface mount IC offers a wide operating supply voltage range from 1.25V to 16V, with a maximum power dissipation of 385mW. Key performance metrics include a 36µs response time, 120dB voltage gain, 88dB common mode rejection ratio, and 105dB power supply rejection ratio. With a low input bias current of 250pA and a quiescent current of 1µA, it is ideal for low-power applications. The SOT-23 package ensures compact integration.

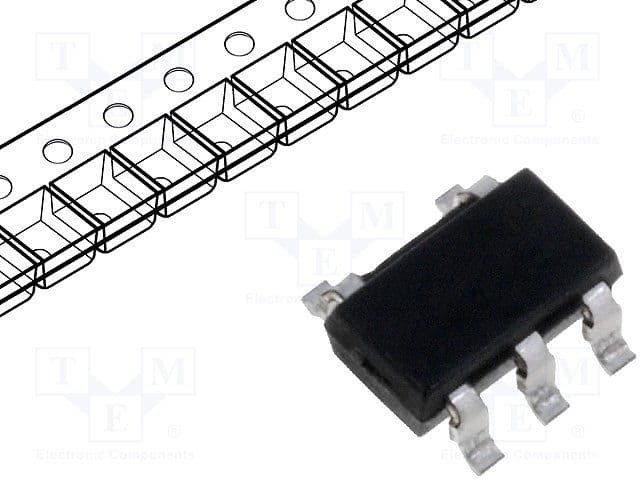

PackageSOT-23

Current800nA

MountingSurface Mount

Power385mW

Quick Jump:

Technical Specifications

Texas Instruments TLV3701CDBVT technical specifications.

General

Package/Case	SOT-23
Common Mode Rejection Ratio	88dB
Input Bias Current	250pA
Input Offset Voltage (Vos)	5mV
Lead Free	Lead Free
Max Dual Supply Voltage	8V
Min Dual Supply Voltage	1.25V
Max Input Current	250pA
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Power Dissipation	385mW
Max Supply Current	800nA
Max Supply Voltage	16V
Min Supply Voltage	2.5V
Mount	Surface Mount
Number of Channels	1
Number of Elements	1
Output Current	10mA
Output Type	PUSH-PULL
Package Quantity	250
Packaging	Tape and Reel
Power Dissipation	385mW
Power Supply Rejection Ratio (PSRR)	105dB
Quiescent Current	1uA
Radiation Hardening	No
Reach SVHC Compliant	No
Response Time	36us
RoHS Compliant	Yes
Series	TLV3701
Supply Current	800nA
Type	General Purpose
Voltage Gain	120dB
Weight	0.000459oz
