10-bit, 8-channel serial Digital-to-Analog Converter (DAC) with a unipolar voltage output. Features an SPI interface and a conversion rate of 283 kS/s. Operates from a 2.7V to 5.5V supply voltage, with a typical power consumption of 18mW. Integral Nonlinearity (INL) is 2 LSB, and Differential Nonlinearity (DNL) is 1 LSB. Packaged in a 20-SOIC, this RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageSOIC
Power18mW
Quick Jump:
Technical Specifications
Texas Instruments TLV5608IDW technical specifications.
General
Package/Case
SOIC
Conversion Rate
283KS/s
Differential Nonlinearity
1LSB
Height
2.35mm
Integral Nonlinearity (INL)
2LSB
Interface
SPI
Lead Free
Lead Free
Length
12.8mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Bits
10
Number of Channels
8
Number of Converters
8
Number of DAC Channels
8
Operating Supply Voltage
5V
Output Polarity
Unipolar
Output Type
Voltage
Output Voltage
2.6V
Package Quantity
25
Packaging
Rail/Tube
Power Consumption
18mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
283KS/s
Series
TLV5608
Settling Time
1us
Supply Type
Analog, Digital
Weight
0.018953oz
Width
7.52mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLV5608IDW Datasheet
Download the complete datasheet for Texas Instruments TLV5608IDW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

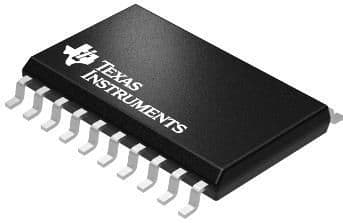

Product Images
