Texas Instruments
TLV70028QDDCRQ1
Automotive 200-mA, high-PSRR, low-IQ, low-dropout voltage regulator 5-SOT-23-THIN -40 to 125
PackageSOT-23-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TLV70028QDDCRQ1 technical specifications.
General
| Accuracy | 2% |
| Package/Case | SOT-23-5 |
| Dropout Voltage | 175mV |
| Lead Free | Lead Free |
| Min Current Limit | 220mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 200mA |
| Output Type | Fixed |
| Output Voltage | 2.8V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 30uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV70028QDDCRQ1 Datasheet
Download the complete datasheet for Texas Instruments TLV70028QDDCRQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

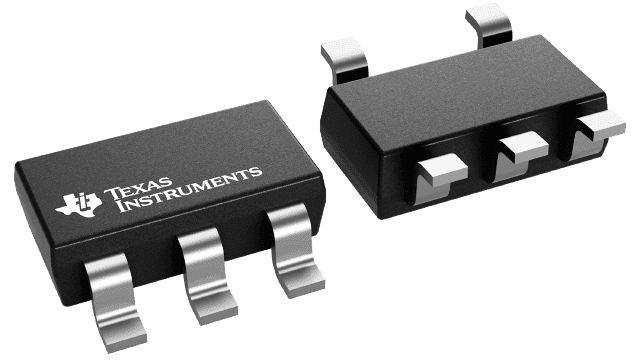

Product Images
