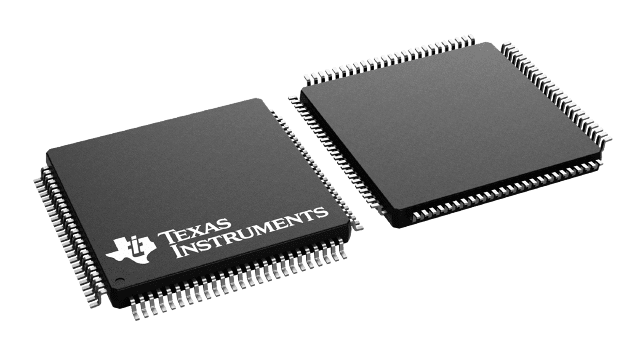

32-bit ARM RISC microcontroller featuring an 80MHz core frequency. This surface mount LQFP package offers 128KB FLASH memory and 32KB RAM. Integrated peripherals include 22 x 12-bit A/D converters, 69 I/Os, 12 timers, and 8 UART channels. Supports I2C, CAN, UART, SPI, IrDA, USART, USB, and I2S interfaces. Operates from 3.15V to 3.63V with an internal oscillator.
Frequency80MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C1231E6PZIR technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
80MHz
Interface
I2C, CAN, UART, SPI, IrDA, USART, USB, I2S
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
85°C
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.63V
Min Supply Voltage
3.15V
Mount
Surface Mount
Number of A/D Converters
22
Number of ADC Channels
22
Number of Bits
12
Number of I/Os
69
Number of Programmable I/O
69
Number of Timers/Counters
12
Number of UART Channels
8
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
