TM4C1231H6PGEI7R
32-bit ARM Cortex-M4F MCU, 80MHz, 256KB Flash, 32KB RAM, 105 I/O, LQFP
High-performance 32-bit ARM Cortex-M4F microcontroller, operating at up to 80MHz. Features 256KB FLASH memory and 32KB RAM, with 105 programmable I/Os. Includes 24 channels of 12-bit A/D conversion and 8 UART channels, alongside I2C, SPI, IrDA, and CAN interfaces. Packaged in a 144-LQFP for surface mounting, this RoHS compliant component operates from -40°C to 85°C and offers peripherals like DMA, POR, and WDT.
Frequency80MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C1231H6PGEI7R technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, IrDA, UART, USART, CAN
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of A/D Converters
24
Number of ADC Channels
24
Number of Bits
12
Number of GPIO
105
Number of I/Os
105
Number of Programmable I/O
105
Number of Timers/Counters
12
Number of UART Channels
8
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT, DMA
RAM Size
32KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C1231H6PGEI7R Datasheet
Download the complete datasheet for Texas Instruments TM4C1231H6PGEI7R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

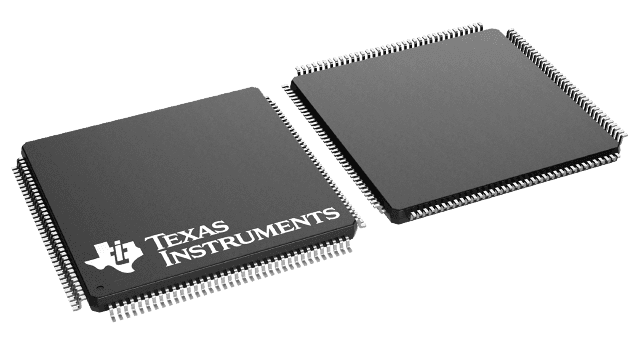

Product Images
