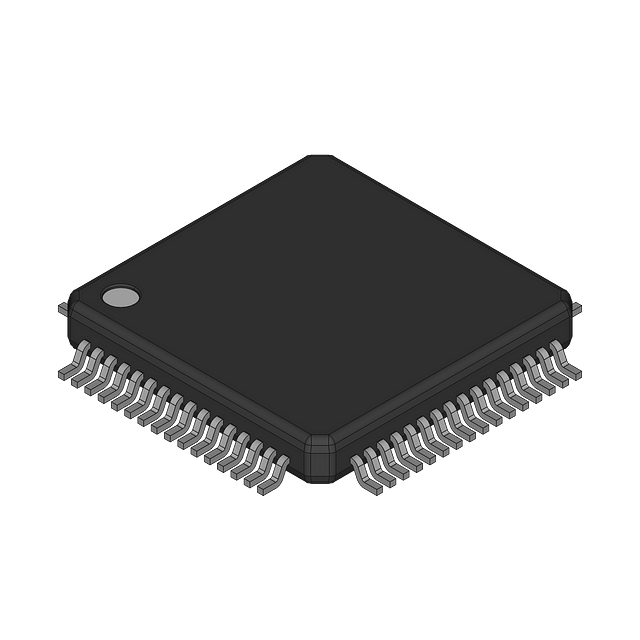

32-bit ARM RISC microcontroller featuring an 80MHz core, 32KB FLASH memory, and 12KB RAM. This surface mount LQFP package offers 43 I/Os and supports I2C, USB, CAN, UART, SPI, IrDA, and USART interfaces. Integrated peripherals include Brown-out Detect/Reset, POR, WDT, and DMA. Operating voltage is 3.3V, with a range of 3.15V to 3.63V, and it functions between -40°C and 85°C. Includes 12-bit A/D converters with 12 channels.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TM4C1233C3PMIR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LQFP |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Interface | I2C, USB, CAN, UART, SPI, IrDA, USART |
| Lead Free | Lead Free |
| Max Frequency | 80MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.63V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 3.15V |
| Mount | Surface Mount |
| Number of A/D Converters | 12 |
| Number of ADC Channels | 12 |
| Number of Bits | 12 |
| Number of I/Os | 43 |
| Number of UART Channels | 8 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, WDT, DMA |
| RAM Size | 12KB |
| RoHS Compliant | Yes |
| Series | Tiva™ C |
| RoHS | Compliant |
