32-bit ARM RISC microcontroller featuring an 80MHz core, 256KB FLASH memory, and 32KB RAM. This surface-mount BGA package offers 120 programmable I/O pins and extensive interfaces including I2C (6 channels), SPI (4 channels), UART (8 channels), CAN, USB, and I2S. Integrated peripherals include 24 A/D converters with 12 channels, 12 timers/counters, PWM, DMA, and a watchdog timer. Operating at 3.3V, this RoHS compliant component is designed for a temperature range of -40°C to 85°C.
Frequency80MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C123BH6ZRBI technical specifications.
General
Package/Case
BGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
80MHz
Height
0.77mm
Interface
I2C, SPI, IrDA, UART, USART, CAN, USB, I2S
Lead Free
Lead Free
Length
9.1mm
Max Frequency
80MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of A/D Converters
24
Number of ADC Channels
12
Number of I2C Channels
6
Number of Programmable I/O
120
Number of SPI Channels
4
Number of Timers/Counters
12
Number of UART Channels
8
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
168
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Width
9.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C123BH6ZRBI Datasheet
Download the complete datasheet for Texas Instruments TM4C123BH6ZRBI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

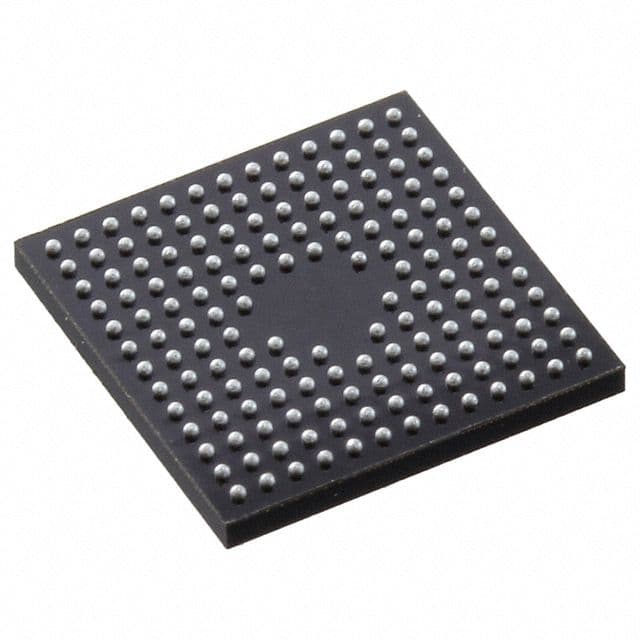

Product Images
