32-bit ARM Cortex-M4F microcontroller featuring 80MHz operation, 256KB FLASH and 32KB RAM. This MCU offers 12-bit Analog-to-Digital conversion with 12 channels and 49 programmable I/Os. Integrated peripherals include I2C, SPI, USB, UART, CAN, DMA, PWM, and a watchdog timer. Packaged in a 64-pin LQFP for surface mounting, it operates from -40°C to 105°C and is RoHS compliant.
Frequency80MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C123FH6PMT7R technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
105°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of A/D Converters
12
Number of ADC Channels
12
Number of Bits
12
Number of GPIO
49
Number of I/Os
43
Number of Programmable I/O
49
Number of Timers/Counters
12
Number of UART Channels
8
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
32KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C123FH6PMT7R Datasheet
Download the complete datasheet for Texas Instruments TM4C123FH6PMT7R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

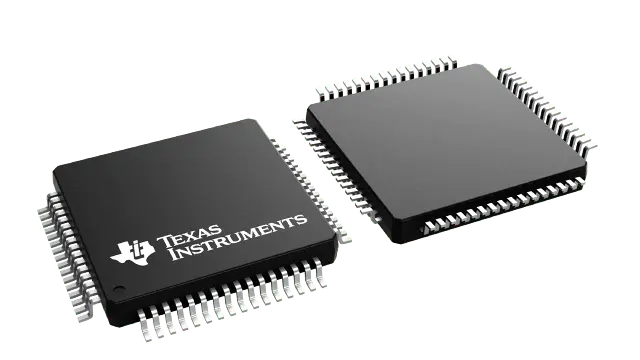

Product Images
