32-bit ARM RISC microcontroller featuring 256KB FLASH memory and 32KB RAM. Operates at up to 80MHz with 105 I/O pins and 24 12-bit A/D converters. Supports I2C, USB, CAN, UART, SPI, IrDA, and USART interfaces. Packaged in LQFP for surface mounting, with an operating voltage range of 3.15V to 3.63V. Includes peripherals like Brown-out Detect/Reset, POR, PWM, WDT, and DMA.
Frequency80MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C123GH6PGETR technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, USB, CAN, UART, SPI, IrDA, USART
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.63V
Memory Size
256KB
Memory Type
FLASH,
Min Supply Voltage
3.15V
Mount
Surface Mount
Number of A/D Converters
24
Number of ADC Channels
24
Number of Bits
12
Number of I/Os
105
Number of UART Channels
8
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
32KB
RoHS Compliant
Yes
Series
Tiva™ C
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C123GH6PGETR Datasheet
Download the complete datasheet for Texas Instruments TM4C123GH6PGETR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

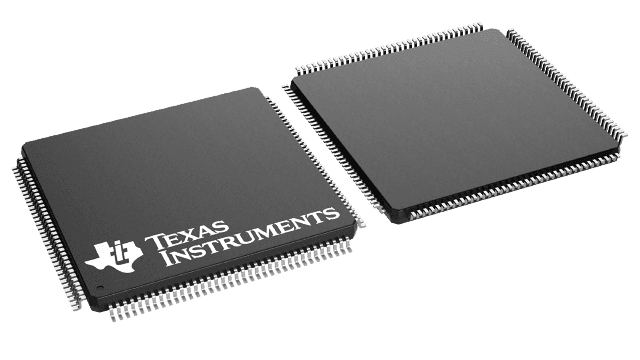

Product Images
