32-bit ARM Cortex-M4F microcontroller featuring 256KB FLASH and 32KB RAM. Operates at up to 80MHz with 43 GPIO pins and 12 A/D converters. Supports I2C, SPI, USB, IrDA, UART, USART, and CAN interfaces. Includes peripherals like PWM, WDT, DMA, and Brown-out Detect/Reset. Surface mountable in a 64-LQFP package, operating from -40°C to 105°C.
Frequency80MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C123GH6PMT7 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
105°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of A/D Converters
12
Number of ADC Channels
12
Number of Bits
12
Number of GPIO
43
Number of I/Os
43
Number of Programmable I/O
43
Number of Timers/Counters
12
Number of UART Channels
8
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
32KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C123GH6PMT7 Datasheet
Download the complete datasheet for Texas Instruments TM4C123GH6PMT7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

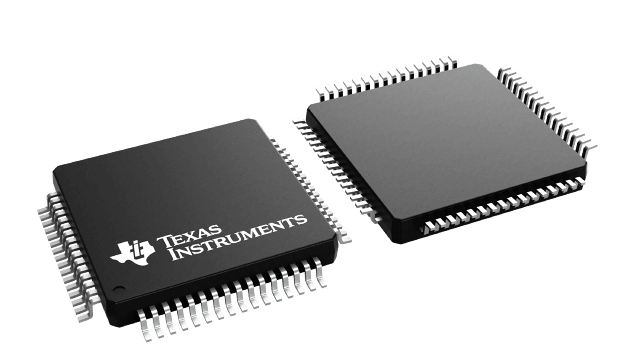

Product Images
