High-performance 32-bit ARM Cortex-M4F microcontroller featuring 120MHz operation, 1MB FLASH memory, and 256KB RAM. Integrated peripherals include 20x 12-bit A/D converters, 8x timers/counters, 8x UART channels, I2C, SPI, USB, Ethernet, IrDA, EBI/EMI, and CAN interfaces. This surface mount TQFP package offers 90 GPIO and supports a wide operating temperature range of -40°C to 105°C. Includes Brown-out Detect/Reset, POR, PWM, WDT, and DMA capabilities.
Frequency120MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C1290NCPDTI3R technical specifications.
General
Package/Case
TQFP
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, Ethernet, IrDA, UART, USART, EBI/EMI, CAN
Lead Free
Lead Free
Max Frequency
120MHz
Max Operating Temperature
105°C
Max Power Dissipation
904mW
Memory Size
1MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of A/D Converters
20
Number of ADC Channels
20
Number of Bits
12
Number of GPIO
90
Number of I/Os
90
Number of Programmable I/O
98
Number of Timers/Counters
8
Number of UART Channels
8
Oscillator Type
Internal
Packaging
Cut Tape
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
256KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C1290NCPDTI3R Datasheet
Download the complete datasheet for Texas Instruments TM4C1290NCPDTI3R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

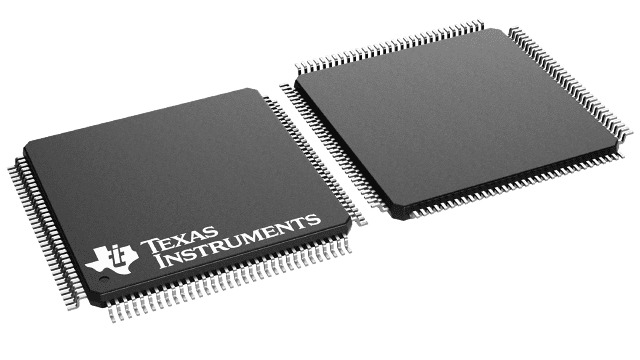

Product Images
