High-performance 32-bit ARM Cortex-M4F microcontroller featuring 1MB FLASH memory and 256KB RAM. Operates at a maximum frequency of 120MHz with 140 programmable I/Os. Includes 24x 12-bit A/D converters and 8 timers/counters. Supports multiple interfaces including I2C, SPI, USB, CAN, and Ethernet. Packaged in VFBGA, this lead-free, RoHS compliant component operates from -40°C to 105°C.
Frequency120MHz
PackageVFBGA
Quick Jump:
Technical Specifications
Texas Instruments TM4C1290NCZADI3R technical specifications.
General
Package/Case
VFBGA
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, CAN, Ethernet, IrDA, UART, USART, EBI/EMI
Lead Free
Lead Free
Max Frequency
120MHz
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.018W
Memory Size
1MB
Memory Type
FLASH,
Number of A/D Converters
24
Number of ADC Channels
24
Number of Bits
12
Number of GPIO
140
Number of I/Os
140
Number of Programmable I/O
140
Number of Timers/Counters
8
Number of UART Channels
8
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
256KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C1290NCZADI3R Datasheet
Download the complete datasheet for Texas Instruments TM4C1290NCZADI3R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

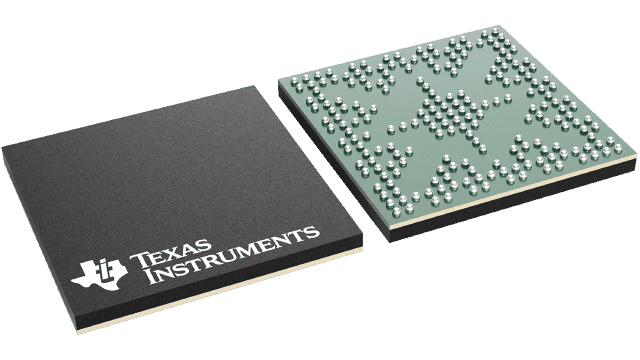

Product Images
