High-performance 32-bit ARM Cortex-M4F microcontroller, operating up to 120MHz. Features 1MB FLASH memory and 256KB RAM, with 90 programmable I/Os. Integrated peripherals include I2C, SPI, USB, Ethernet, CAN, and 8 UART channels. Offers 20 A/D converters with 12-bit resolution. Packaged in a 128-TQFP, this lead-free and RoHS compliant MCU operates from -40°C to 105°C.
Frequency120MHz
PackageTQFP
Quick Jump:
Technical Specifications
Texas Instruments TM4C1294NCPDTT3R technical specifications.
General
Package/Case
TQFP
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, Ethernet, IrDA, UART, USART, EBI/EMI, CAN
Lead Free
Lead Free
Max Frequency
120MHz
Max Operating Temperature
105°C
Max Power Dissipation
452mW
Memory Size
1MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of A/D Converters
20
Number of ADC Channels
20
Number of Bits
12
Number of GPIO
90
Number of I/Os
90
Number of Programmable I/O
90
Number of Timers/Counters
8
Number of UART Channels
8
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
256KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C1294NCPDTT3R Datasheet
Download the complete datasheet for Texas Instruments TM4C1294NCPDTT3R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

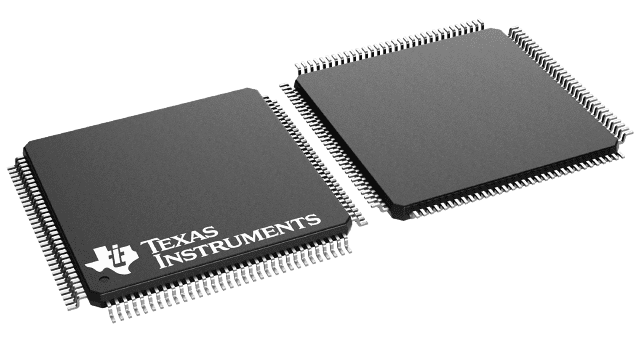

Product Images
