32-bit ARM Cortex-M4F microcontroller featuring a 120MHz core speed, 1MB FLASH memory, and 256KB RAM. Offers extensive connectivity with I2C, SPI, USB, Ethernet, IrDA, UART, USART, EBI/EMI, and CAN interfaces. Includes 24 12-bit Analog-to-Digital converters and 140 GPIO pins. Operates across a -40°C to 105°C temperature range, housed in a VFBGA package for surface mounting. Integrated peripherals include DMA, PWM, WDT, and POR.
Frequency120MHz
PackageVFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C1297NCZADI3R technical specifications.
General
Package/Case
VFBGA
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, Ethernet, IrDA, UART, USART, EBI/EMI, CAN
Lead Free
Lead Free
Max Frequency
120MHz
Max Operating Temperature
105°C
Max Power Dissipation
1.018W
Memory Size
1MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of A/D Converters
24
Number of ADC Channels
24
Number of Bits
12
Number of GPIO
140
Number of I/Os
140
Number of Programmable I/O
140
Number of Timers/Counters
8
Number of UART Channels
8
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
256KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C1297NCZADI3R Datasheet
Download the complete datasheet for Texas Instruments TM4C1297NCZADI3R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

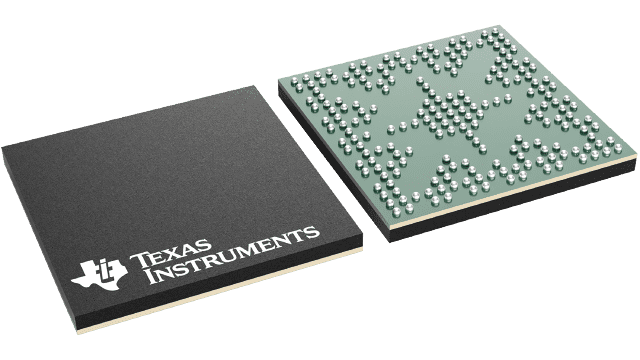

Product Images
