High-performance 32-bit ARM Cortex-M4F microcontroller featuring 1MB FLASH and 256KB RAM. Operates at a maximum frequency of 120MHz with 90 GPIO and 98 programmable I/O pins. Integrated peripherals include I2C, SPI, USB, Ethernet, UART, CAN, and 20 channels of 12-bit A/D conversion. Designed for surface mount installation in a 128-TQFP package, this lead-free and RoHS compliant component operates from -40°C to 105°C.
Frequency120MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C129DNCPDTT3R technical specifications.
General
Package/Case
TQFP
Core Architecture
ARM
Data Bus Width
32b
Height
1.2mm
Interface
I2C, SPI, USB, Ethernet, IrDA, UART, USART, EBI/EMI, CAN
Lead Free
Lead Free
Length
14mm
Max Frequency
120MHz
Max Operating Temperature
105°C
Max Power Dissipation
452mW
Memory Size
1MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of A/D Converters
20
Number of ADC Channels
20
Number of Bits
12
Number of GPIO
90
Number of I/Os
90
Number of Programmable I/O
98
Number of Timers/Counters
8
Number of UART Channels
8
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
256KB
RoHS Compliant
Yes
Series
Tiva™ C
Thickness
1mm
Watchdog Timer
Yes
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C129DNCPDTT3R Datasheet
Download the complete datasheet for Texas Instruments TM4C129DNCPDTT3R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

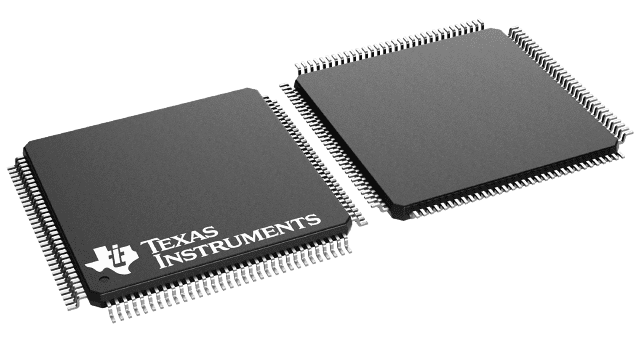

Product Images
