High-performance 32-bit ARM Cortex-M4F microcontroller featuring 120MHz operation, 512KB FLASH and 256KB RAM. Offers extensive connectivity with I2C, SPI, USB, Ethernet, IrDA, UART, USART, EBI/EMI, and CAN interfaces. Includes 24 channels of 12-bit A/D conversion and 140 programmable I/Os. Surface mountable in a VFBGA package, operating from -40°C to 105°C, with integrated peripherals like DMA, PWM, and WDT.
Frequency120MHz
PackageVFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C129XKCZADT3 technical specifications.
General
Package/Case
VFBGA
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, Ethernet, IrDA, UART, USART, EBI/EMI, CAN
Lead Free
Lead Free
Max Frequency
120MHz
Max Operating Temperature
105°C
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
509mW
Mount
Surface Mount
Number of A/D Converters
24
Number of ADC Channels
24
Number of Bits
12
Number of GPIO
140
Number of I/Os
140
Number of Programmable I/O
140
Number of Timers/Counters
8
Number of UART Channels
8
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
256KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C129XKCZADT3 Datasheet
Download the complete datasheet for Texas Instruments TM4C129XKCZADT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

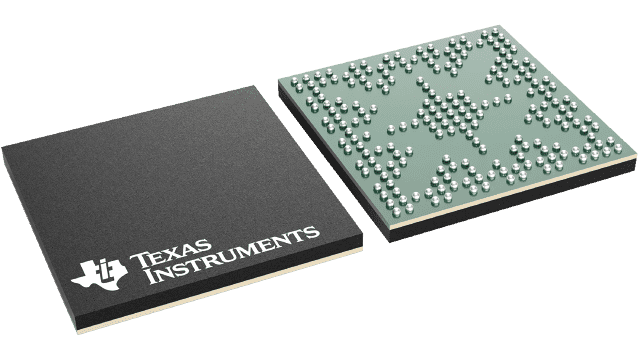

Product Images
