High-performance 32-bit ARM Cortex-M4F microcontroller featuring a 120MHz core frequency. This MCU offers 1MB of FLASH memory and 256KB of RAM, with 24 integrated 12-bit A/D converters and 140 programmable I/O pins. Connectivity options include I2C, SPI, USB, CAN, Ethernet, IrDA, UART, USART, and EBI/EMI interfaces. Operating from 2.97V to 3.63V, this lead-free, RoHS-compliant component is housed in a 212-NFBGA package and supports a temperature range of -40°C to 105°C.
Frequency120MHz
PackageVFBGA
Quick Jump:
Technical Specifications
Texas Instruments TM4C129XNCZADI3 technical specifications.
General
Package/Case
VFBGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
120MHz
Interface
I2C, SPI, USB, CAN, Ethernet, IrDA, UART, USART, EBI/EMI
Lead Free
Lead Free
Max Frequency
120MHz
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.018W
Max Supply Voltage
3.63V
Memory Size
1MB
Memory Type
FLASH,
Min Supply Voltage
2.97V
Number of A/D Converters
24
Number of ADC Channels
24
Number of Bits
12
Number of GPIO
140
Number of I/Os
140
Number of Programmable I/O
140
Number of Timers/Counters
8
Number of UART Channels
8
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
184
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
256KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C129XNCZADI3 Datasheet
Download the complete datasheet for Texas Instruments TM4C129XNCZADI3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

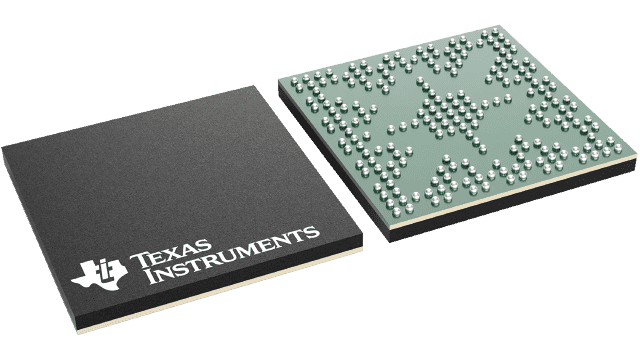

Product Images
