32-bit microcontroller featuring a 200MHz clock speed and 200 MIPS performance. Integrated Floating Point Unit (FPU) and 260KB RAM. Supports I2C, SPI, CAN, SCI, EBI/EMI, and UART interfaces. Operates from 1.05V to 3.46V with a 3.3V nominal supply. Includes 88 programmable I/O pins, 3 timers/counters, and 3 UART channels. Packaged in a 256-BGA for surface mounting, with an operating temperature range of -40°C to 105°C.
Frequency200MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320C28343ZFEQ technical specifications.
General
Package/Case
BGA
Data Bus Width
32b
Frequency
200MHz
Interface
I2C, SPI, CAN, SCI, EBI/EMI, UART
Lead Free
Lead Free
Max Frequency
200MHz
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.46V
Memory Size
16KB
Memory Type
ROM,
Min Supply Voltage
1.05V
Mount
Surface Mount
Number of Programmable I/O
88
Number of Timers/Counters
3
Number of UART Channels
3
Operating Supply Voltage
3.3V
Package Quantity
90
Packaging
Tray
Radiation Hardening
No
RAM Size
260KB
RoHS Compliant
Yes
Series
TMS320C2834x Delfino™
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320C28343ZFEQ Datasheet
Download the complete datasheet for Texas Instruments TMS320C28343ZFEQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

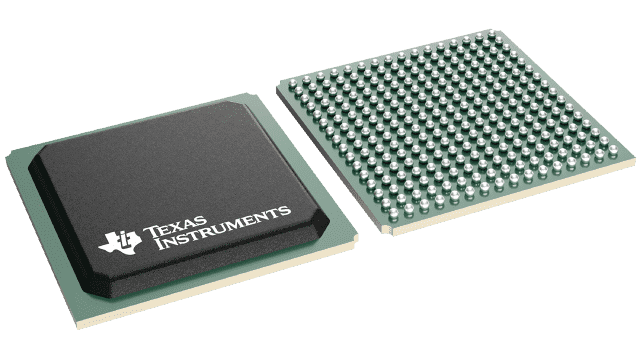

Product Images
