32-bit microcontroller featuring a 300MHz core speed and 260KB RAM. This surface mount device offers 88 programmable I/O pins, multiple communication interfaces including I2C, SPI, CAN, UART, SCI, and EBI/EMI, and a 3.3V operating supply voltage. With a temperature range of -40°C to 105°C and a watchdog timer, it is designed for robust performance.
Frequency300MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320C28344ZFET technical specifications.
General
Package/Case
BGA
Data Bus Width
32b
Frequency
300MHz
Interface
I2C, SPI, CAN, UART, SCI, EBI/EMI
Lead Free
Lead Free
Max Frequency
300MHz
Max Operating Temperature
105°C
Memory Size
16KB
Memory Type
ROM,
Min Operating Temperature
-40°C
Max Supply Voltage
3.46V
Min Supply Voltage
3.14V
Mount
Surface Mount
Number of I/Os
88
Number of Programmable I/O
88
Number of Timers/Counters
3
Number of UART Channels
3
Operating Supply Voltage
3.3V
Package Quantity
90
Packaging
Tray
Radiation Hardening
No
RAM Size
260KB
RoHS Compliant
Yes
Series
TMS320C2834x Delfino™
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320C28344ZFET Datasheet
Download the complete datasheet for Texas Instruments TMS320C28344ZFET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

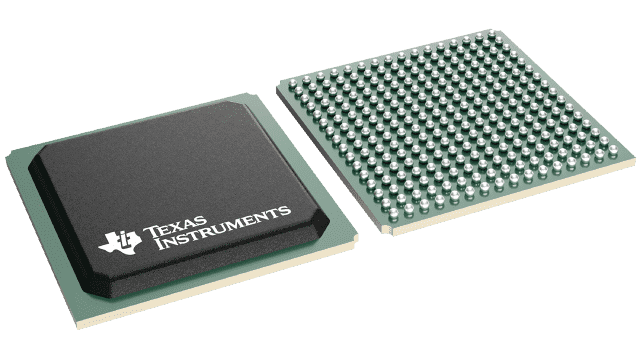

Product Images
