16-bit fixed-point digital signal processor (DSP) operating at 120MHz, delivering 120MIPS performance. Features a TMS320 core architecture with a 16-bit data bus and 80KB of RAM, alongside 256KB of memory. Housed in a 144-pin LQFP surface-mount package, this RoHS-compliant component supports UART interface and operates from 1.42V to 5.25V.
Frequency120MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320C54CSTPGE technical specifications.
General
Package/Case
LQFP
Core Architecture
TMS320
Data Bus Width
16b
Frequency
120MHz
Interface
UART
Lead Free
Lead Free
Max Frequency
120MHz
Max Operating Temperature
100°C
Max Supply Voltage
5.25V
Memory Size
256KB
Min Operating Temperature
0°C
Min Supply Voltage
1.42V
Mount
Surface Mount
Number of Bits
16
Number of I/Os
21
Operating Supply Voltage
1.5V
Package Quantity
60
Packaging
Rail/Tube
Radiation Hardening
No
RAM Size
80KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TMS320C54x
Weight
0.045518oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320C54CSTPGE Datasheet
Download the complete datasheet for Texas Instruments TMS320C54CSTPGE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

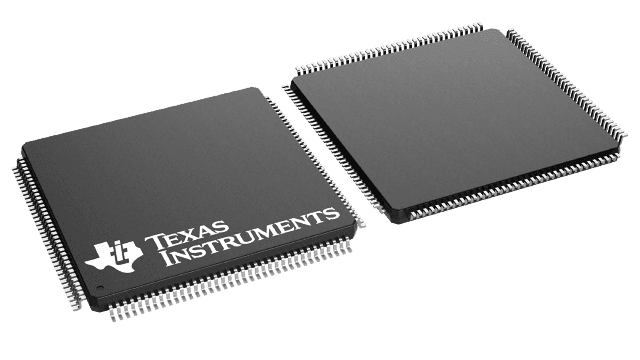

Product Images
