Texas Instruments
TMS320C6671ACYPA25
1 core fixed and floating point digital signal processor 841-FCBGA -40 to 100
Frequency1.25GHz
PackageFCBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320C6671ACYPA25 technical specifications.
General
Package/Case
FCBGA
Data Bus Width
8b
Frequency
1.25GHz
Interface
I2C, SPI, Ethernet, PCIe, UART, EBI/EMI
Lead Free
Lead Free
Max Frequency
1.25GHz
Max Operating Temperature
100°C
Max Supply Voltage
1.05V
Memory Size
64KB
Min Operating Temperature
-40°C
Min Supply Voltage
950mV
Mount
Surface Mount
Number of I/Os
16
Number of Programmable I/O
16
Number of Timers/Counters
9
Number of UART Channels
1
Package Quantity
44
Packaging
Tray
Radiation Hardening
No
RAM Size
4MB
RoHS Compliant
Yes
Series
TMS320C66x
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320C6671ACYPA25 Datasheet
Download the complete datasheet for Texas Instruments TMS320C6671ACYPA25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

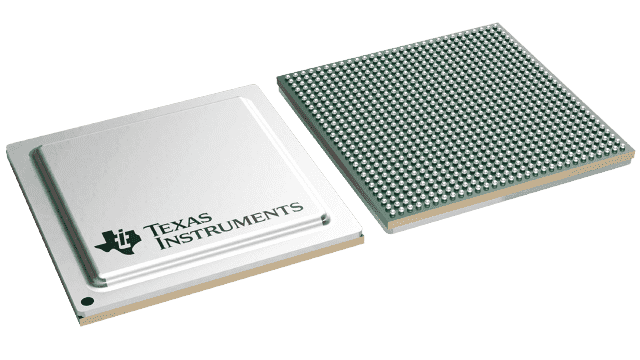

Product Images
