Frequency150MHz
PackageFCBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320C6701GJC150 technical specifications.
General
| Package/Case | FCBGA |
| Core Architecture | TMS320 |
| Data Bus Width | 32b |
| Frequency | 150MHz |
| Lead Free | Contains Lead |
| Max Frequency | 150MHz |
| Max Operating Temperature | 90°C |
| Max Supply Voltage | 3.46V |
| Memory Size | 64KB |
| Memory Type | SDRAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of Bits | 32 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 21 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 128KB |
| RoHS Compliant | No |
| Series | TMS320C67x |
| Weight | 0.492329oz |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments TMS320C6701GJC150 Datasheet
Download the complete datasheet for Texas Instruments TMS320C6701GJC150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

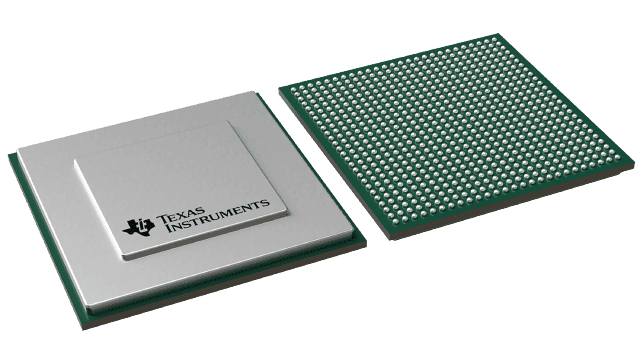

Product Images
