Floating-point digital signal processor featuring a TMS320 core architecture with a 32-bit data bus width, operating at a maximum frequency of 275MHz. This surface mount device is housed in a 256-BGA package and supports I2C, SPI, EBI/EMI, and McASP interfaces. It offers 256KB of RAM and 384KB of total memory, compatible with SDRAM, ROM, RAM, SDR, and FLASH memory types. The processor operates within a supply voltage range of 1.14V to 3.47V, with a typical operating voltage of 1.2V, and has an operating temperature range of 0°C to 90°C. This RoHS compliant component is lead-free.
Frequency275MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320C6727BZDH275 technical specifications.
General
Package/Case
BGA
Core Architecture
TMS320
Data Bus Width
32b
Frequency
275MHz
Height
1.52mm
Interface
I2C, SPI, EBI/EMI, McASP
Lead Free
Lead Free
Length
17.2mm
Max Frequency
275MHz
Max Operating Temperature
90°C
Max Supply Voltage
3.47V
Memory Size
384KB
Memory Type
SDRAM, ROM, RAM, SDR, FLASH,
Min Operating Temperature
0°C
Min Supply Voltage
1.14V
Mount
Surface Mount
Number of I2C Channels
2
Number of SPI Channels
2
Operating Supply Voltage
1.2V
Package Quantity
90
Packaging
Tray
Radiation Hardening
No
RAM Size
256KB
RoHS Compliant
Yes
Series
TMS320C672x
Weight
0.034815oz
Width
17.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320C6727BZDH275 Datasheet
Download the complete datasheet for Texas Instruments TMS320C6727BZDH275 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

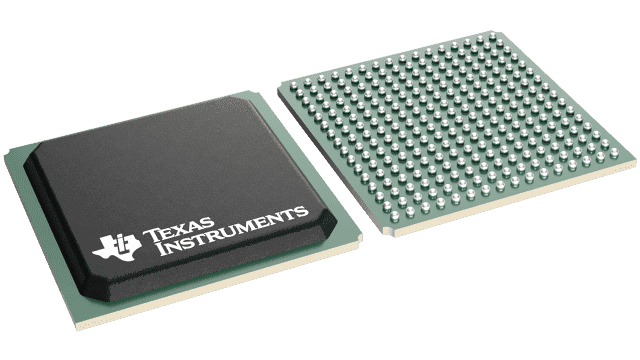

Product Images
