TEXAS INSTRUMENTS

TMS320C6727BZDH300

Datasheet

DSP 32/64-bit 300MHz Floating-Point BGA IC

Texas Instruments

TMS320C6727BZDH300

Name: TMS320C6727BZDH300 Texas Instruments
Brand: Texas Instruments
SKU: TMS320C6727BZDH300

DSP 32/64-bit 300MHz Floating-Point BGA IC

Floating-point digital signal processor (DSP) with a 32-bit data bus width and 300MHz clock frequency, delivering 2400 MIPS. Features 384KB of memory, including 256KB RAM, and supports SDRAM, ROM, and RAM memory types. Offers I2C, SPI, EBI/EMI, and McASP interfaces, with 84 I/Os. Packaged in a 256-pin BGA for surface mounting, operating from 1.14V to 3.47V, and is RoHS compliant.

Frequency300MHz

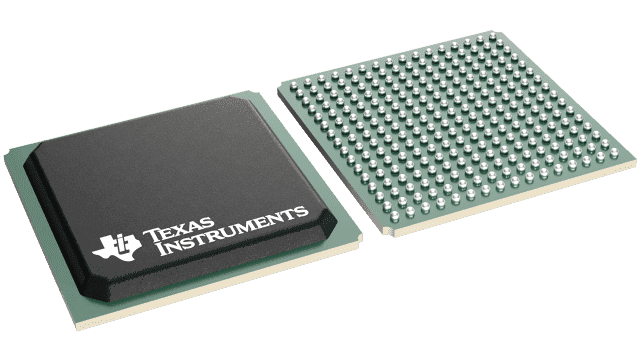

PackageBGA

MountingSurface Mount

Quick Jump:

Technical Specifications

Texas Instruments TMS320C6727BZDH300 technical specifications.

General

Package/Case	BGA
Core Architecture	TMS320
Data Bus Width	32b
Density	1MB
Frequency	300MHz
Interface	I2C, SPI, EBI/EMI, McASP
Lead Free	Lead Free
Max Frequency	300MHz
Max Operating Temperature	90°C
Memory Size	384KB
Memory Type	SDRAM, ROM, RAM, SDR
Min Operating Temperature	0°C
Max Supply Voltage	3.47V
Min Supply Voltage	1.14V
Mount	Surface Mount
Number of Bits	32
Number of I/Os	84
Operating Supply Voltage	1.2V
Package Quantity	90
Packaging	Tray
Radiation Hardening	No
RAM Size	256KB
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	TMS320C672x
Weight	0.034815oz
