32-bit fixed-point digital signal processor operating at 660MHz, delivering 5280 MIPS. Features a TMS320 core architecture with 640KB RAM and 256KB on-chip memory. Offers extensive interfaces including I2C, Ethernet, UART, PCI, McASP, and SSP, with 111 programmable I/Os. Operates within a temperature range of -40°C to 85°C and supports a supply voltage from 1.14V to 1.26V. Surface mountable in an LFBGA package, this RoHS compliant component is supplied in trays.
Frequency660MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320DM6437ZWTQ6 technical specifications.
General
Package/Case
LFBGA
Core Architecture
TMS320
Data Bus Width
32b
Frequency
660MHz
Interface
I2C, Ethernet, UART, PCI, McASP, SSP
Lead Free
Lead Free
Max Frequency
660MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.26V
Memory Size
256KB
Min Supply Voltage
1.14V
Mount
Surface Mount
Number of Bits
32
Number of I/Os
111
Number of Programmable I/O
111
Number of Timers/Counters
2
Number of UART Channels
2
Package Quantity
90
Packaging
Tray
Radiation Hardening
No
RAM Size
640KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TMS320DM643x, DaVinci™
Weight
0.027845oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320DM6437ZWTQ6 Datasheet
Download the complete datasheet for Texas Instruments TMS320DM6437ZWTQ6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

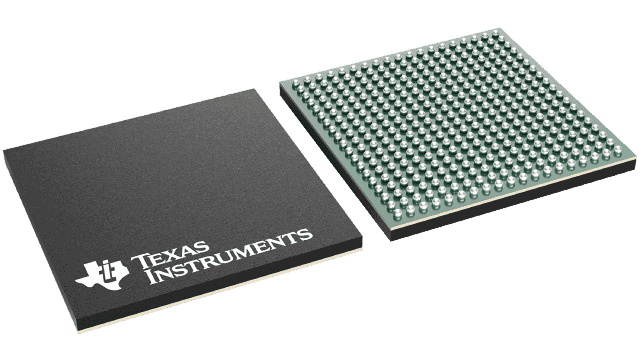

Product Images
