32-bit Digital Signal Controller featuring a 100MHz clock speed and 32KB of FLASH memory. This device offers 35 programmable I/Os, 16 analog-to-digital converters, and supports I2C, SPI, UART, USART, and SCI interfaces. Operating from 1.71V to 3.47V, it functions across a -40°C to 125°C temperature range. The LFBGA package is designed for surface mounting.
Frequency100MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320F2801GGMS technical specifications.
General
Package/Case
LFBGA
Data Bus Width
32b
Frequency
100MHz
Interface
I2C, SPI, UART, USART, SCI
Lead Free
Contains Lead
Max Frequency
100MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.47V
Memory Size
32KB
Memory Type
FLASH, , EEPROM
Min Supply Voltage
1.71V
Mount
Surface Mount
Number of A/D Converters
16
Number of I/Os
35
Number of Programmable I/O
35
Number of UART Channels
1
Operating Supply Voltage
1.8V
Oscillator Type
Internal
Package Quantity
184
Packaging
Tray
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
12KB
RoHS Compliant
No
Series
C2000™ C28x Fixed-Point
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments TMS320F2801GGMS Datasheet
Download the complete datasheet for Texas Instruments TMS320F2801GGMS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

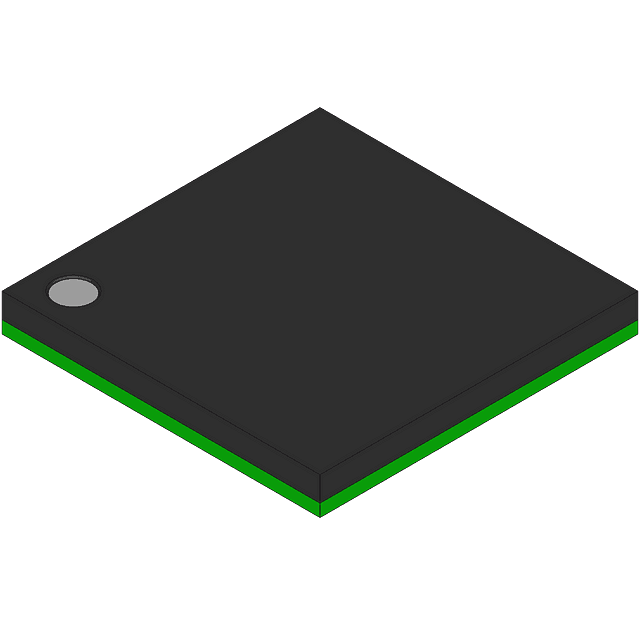

Product Images
