32-bit microcontroller featuring a 40 MHz clock speed and 32 KB of FLASH memory. This surface mount device offers 20 programmable I/O pins, 3 timers/counters, and 1 UART channel. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Operating voltage ranges from 2.97V to 3.63V, with a typical 3.3V. The 38-TSSOP package supports operation from -40°C to 105°C and includes I2C, SPI, UART, USART, and SCI interfaces.
Frequency40MHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320F280230DAT technical specifications.
General
Package/Case
TSSOP
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, UART, USART, SCI
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.63V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
2.97V
Mount
Surface Mount
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
3
Number of UART Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
40
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
C2000™ C28x Piccolo™
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320F280230DAT Datasheet
Download the complete datasheet for Texas Instruments TMS320F280230DAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

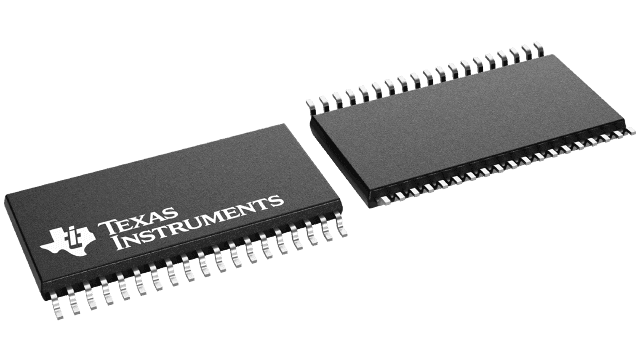

Product Images
