32-bit microcontroller featuring a 60 MHz C2000™ C28x Piccolo™ core. This surface mount device offers 32 KB FLASH memory and 12 KB RAM, with 26 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, SCI, and CAN interfaces, along with PWM and watchdog timer functionality. Operating voltage ranges from 1.71V to 3.63V, with a typical 3.3V supply, and operates across an industrial temperature range of -40°C to 105°C.
Frequency60MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320F28030RSHS technical specifications.
General
Package/Case
VQFN
Core Architecture
C2000
Data Bus Width
32b
Frequency
60MHz
Interface
I2C, SPI, UART, USART, SCI, CAN
Lead Free
Lead Free
Max Frequency
60MHz
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.63V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
1.71V
Mount
Surface Mount
Number of I/Os
26
Number of Programmable I/O
26
Number of Timers/Counters
3
Number of UART Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
12KB
RoHS Compliant
Yes
Series
C2000™ C28x Piccolo™
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320F28030RSHS Datasheet
Download the complete datasheet for Texas Instruments TMS320F28030RSHS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

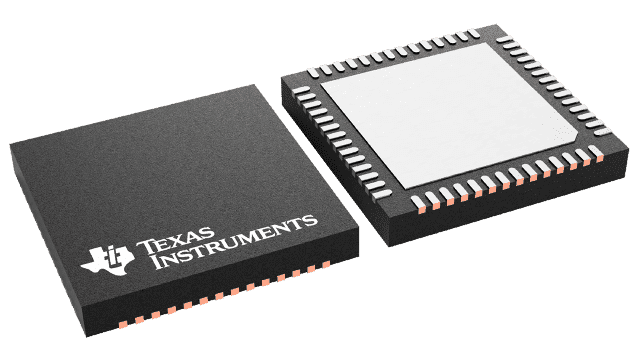

Product Images
