Texas Instruments
TMS320F28053PNS
C2000™ 32-bit MCU with 60 MHz, 64 KB Flash, CLA, PGAs, 3.75 MSPS ADC 80-LQFP -40 to 125
Frequency60MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments TMS320F28053PNS technical specifications.
General
Package/Case
LQFP
Data Bus Width
32b
Interface
I2C, SPI, CAN, UART, USART, SCI
Lead Free
Lead Free
Max Frequency
60MHz
Max Operating Temperature
105°C
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of I/Os
42
Number of Programmable I/O
42
Number of Timers/Counters
3
Number of UART Channels
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
20KB
RoHS Compliant
Yes
Series
C2000™ C28x Piccolo™
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320F28053PNS Datasheet
Download the complete datasheet for Texas Instruments TMS320F28053PNS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

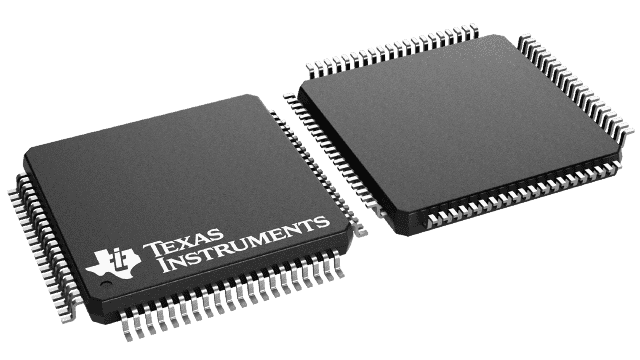

Product Images
