32-bit microcontroller featuring a 90 MHz clock speed and a Floating-Point Unit (FPU). This MCU offers 128 KB of Flash memory and 52 KB of RAM, with 40 programmable I/O pins. Integrated peripherals include I2C, SPI, USB, CAN, UART, SCI, and USART interfaces, along with PWM, DMA, and watchdog timer functionality. Operating voltage ranges from 2.97V to 3.63V, with an operating temperature range of -40°C to 105°C. Packaged in an 80-pin LQFP, this RoHS compliant component is lead-free.
Frequency90MHz
PackageLQFP
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Texas Instruments TMS320F28062UPNT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Texas Instruments TMS320F28062UPNT technical specifications.
General
| Package/Case | LQFP |
| Data Bus Width | 32b |
| Frequency | 90MHz |
| Interface | I2C, SPI, USB, CAN, UART, SCI, USART |
| Lead Free | Lead Free |
| Max Frequency | 80MHz |
| Max Operating Temperature | 105°C |
| Max Supply Voltage | 3.63V |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.97V |
| Number of GPIO | 40 |
| Number of I/Os | 40 |
| Number of Programmable I/O | 40 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package Quantity | 119 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 52KB |
| RoHS Compliant | Yes |
| Series | C2000™ C28x Piccolo™ |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TMS320F28062UPNT Datasheet
Download the complete datasheet for Texas Instruments TMS320F28062UPNT to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

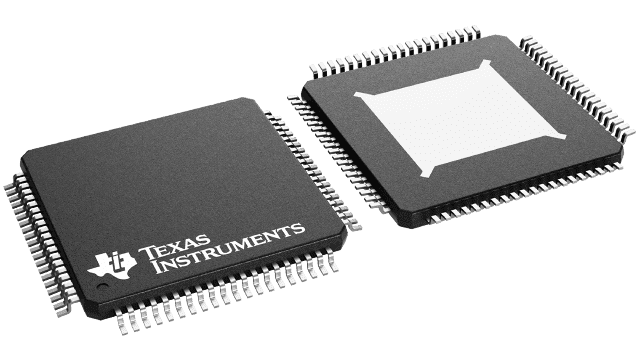

Product Images
