32-bit microcontroller featuring a 90 MHz clock speed and integrated Floating-Point Unit (FPU). Offers 256 KB of FLASH memory and 68 KB of RAM. Includes multiple communication interfaces such as I2C, SPI, UART, USART, SCI, and CAN. Operates within a temperature range of -40°C to 105°C with a supply voltage of 2.97V to 3.63V. Packaged in an 80-HTQFP with 40 programmable I/O pins and includes peripherals like PWM, DMA, and a watchdog timer.
Frequency90MHz
PackageHTQFP
Quick Jump:
Technical Specifications
Texas Instruments TMS320F28066PFPS technical specifications.
General
Package/Case
HTQFP
Data Bus Width
8b
Frequency
90MHz
Height
1.2mm
Interface
I2C, SPI, UART, USART, SCI, CAN
Lead Free
Lead Free
Length
12mm
Max Frequency
400kHz
Max Operating Temperature
105°C
Max Supply Voltage
3.63V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.97V
Number of GPIO
40
Number of I/Os
40
Number of Programmable I/O
40
Number of Timers/Counters
3
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1000
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
34KB
RoHS Compliant
Yes
Series
C2000™ C28x Piccolo™
Thickness
1mm
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320F28066PFPS Datasheet
Download the complete datasheet for Texas Instruments TMS320F28066PFPS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

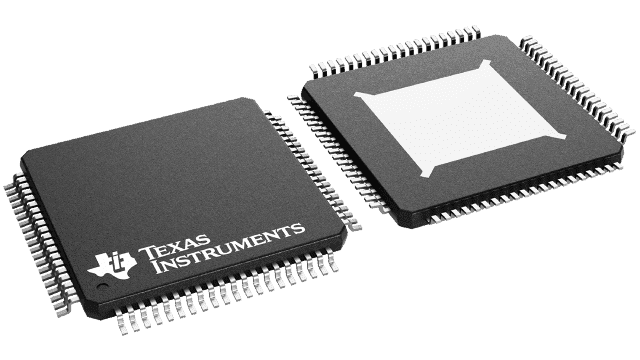

Product Images
