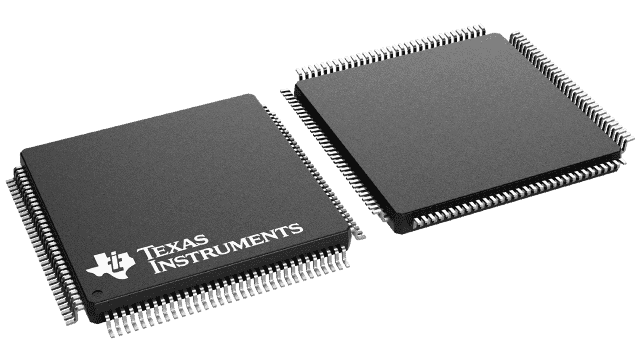

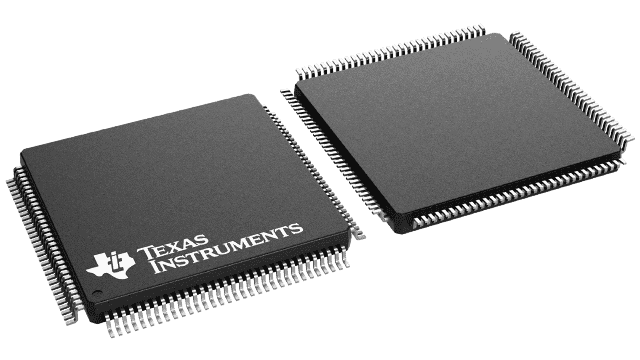

32-bit Digital Signal Processor (DSP) featuring a 150 MHz clock speed and 128 KB of FLASH memory. This microcontroller offers 36 KB of RAM, 16 analog-to-digital converters, and 56 GPIO pins. Integrated peripherals include SPI, UART, USART, SCI, POR, PWM, WDT, and DMA. Operating from a 3.3V supply, it supports a temperature range of -40°C to 125°C and is available in a lead-free, surface-mount LQFP package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TMS320F2810PBKQR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LQFP |
| Data Bus Width | 32b |
| Density | 131072B |
| Interface | SPI, UART, USART, SCI |
| Lead Free | Lead Free |
| Max Frequency | 150MHz |
| Max Operating Temperature | 125°C |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of A/D Converters | 16 |
| Number of GPIO | 56 |
| Number of I/Os | 56 |
| Number of UART Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Peripherals | POR, PWM, WDT, DMA |
| RAM Size | 36KB |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100, C2000™ C28x Fixed-Point |
| Weight | 0.021693oz |
| RoHS | Compliant |
