32-bit Digital Signal Processor (DSP) featuring a 150MHz clock speed and 256KB of FLASH memory. This microcontroller offers 56 programmable I/Os, including 2 UART channels, SPI, CAN, and SCI interfaces. It operates within a temperature range of -40°C to 125°C and supports a supply voltage from 1.81V to 3.47V. The device is packaged in an LFBGA, suitable for surface mounting, and includes peripherals like POR, PWM, WDT, and DMA.
Frequency150MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320F2812GHHS technical specifications.
General
| Package/Case | LFBGA |
| Data Bus Width | 32b |
| Density | 256KB |
| Frequency | 150MHz |
| Interface | SPI, CAN, UART, USART, SCI, EBI/EMI |
| Lead Free | Contains Lead |
| Max Frequency | 150MHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 3.47V |
| Memory Size | 256KB |
| Memory Type | FLASH, , EEPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.81V |
| Mount | Surface Mount |
| Number of A/D Converters | 16 |
| Number of Bits | 32 |
| Number of GPIO | 56 |
| Number of I/Os | 56 |
| Number of Programmable I/O | 56 |
| Number of UART Channels | 2 |
| Operating Supply Voltage | 1.9V |
| Oscillator Type | Internal |
| Package Quantity | 160 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 36KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | C2000™ C28x Fixed-Point |
| Weight | 0.012205oz |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments TMS320F2812GHHS Datasheet
Download the complete datasheet for Texas Instruments TMS320F2812GHHS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

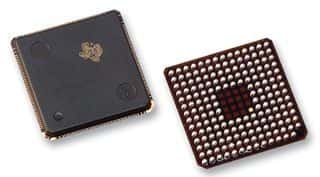

Product Images
