16-bit fixed-point digital signal processor operating at 40MHz, delivering 40 MIPS. Features 64KB FLASH memory and 5KB RAM. Includes SPI, CAN, UART, USART, and SCI interfaces. Packaged in a 100-pin LQFP for surface mounting, with 41 I/Os and an internal oscillator. RoHS compliant and operates within a 3V to 3.6V supply range, with an extended temperature range of -40°C to 125°C.
Frequency40MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320LF2406APZS technical specifications.
General
Package/Case
LQFP
Data Bus Width
16b
Frequency
40MHz
Interface
SPI, CAN, UART, USART, SCI
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
41
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
1
Packaging
Tray
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C2000™ C24x 16-Bit
Weight
0.02242oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320LF2406APZS Datasheet
Download the complete datasheet for Texas Instruments TMS320LF2406APZS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

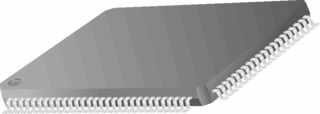

Product Images
