16-bit fixed-point digital signal processor operating at 40MHz, delivering 40 MIPS. Features 64KB FLASH memory, 5KB RAM, and an internal oscillator. Equipped with SPI, CAN, UART, USART, SCI, and EBI/EMI interfaces. Housed in a 144-pin LQFP package for surface mounting, with 41 I/Os. Operates within a 3V to 3.6V supply voltage range and a temperature range of -40°C to 85°C.
Frequency40MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320LF2407APGEA technical specifications.
General
Package/Case
LQFP
Data Bus Width
16b
Density
64KB
Frequency
40MHz
Height
1.4mm
Interface
SPI, CAN, UART, USART, SCI, EBI/EMI
Lead Free
Lead Free
Length
20mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH, , EEPROM
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
41
Oscillator Type
Internal
Package Quantity
60
Packaging
Tray
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C2000™ C24x 16-Bit
Termination
SMD/SMT
Weight
0.045518oz
Width
20mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320LF2407APGEA Datasheet
Download the complete datasheet for Texas Instruments TMS320LF2407APGEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

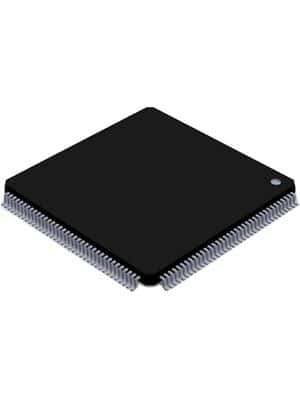

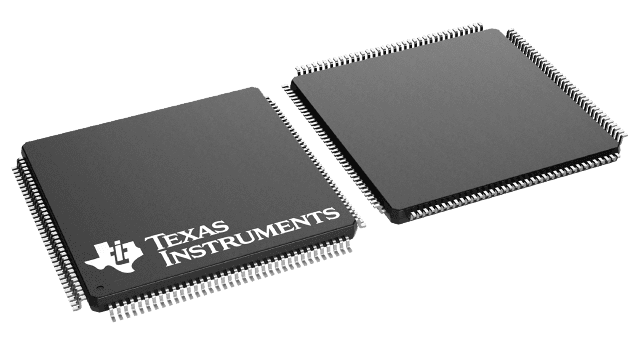

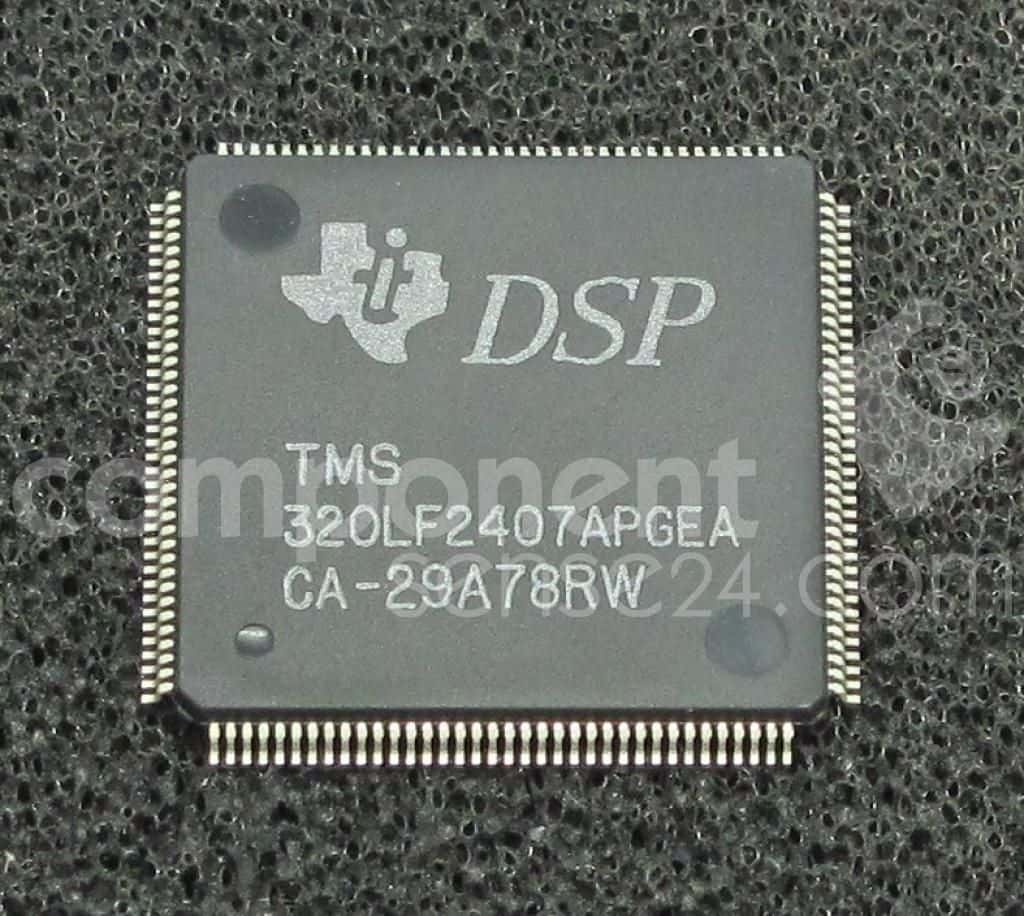

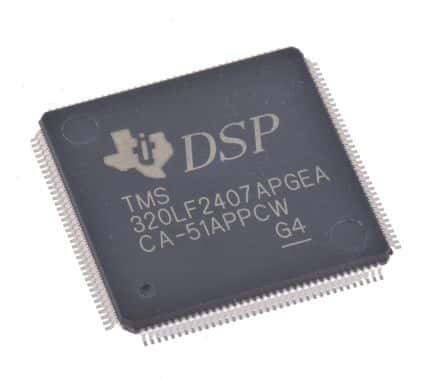

Product Images
