32-bit Digital Signal Controller featuring a 150MHz core, 40KB RAM, and ROMless architecture. Offers 56 programmable I/Os, 16 A/D converters, and multiple interfaces including I2C, SPI, UART, USART, SCI, and EBI/EMI. Operates from 1.81V to 3.47V with an operating temperature range of -40°C to 85°C. Surface mountable in an LFBGA package, this component includes peripherals like POR, PWM, WDT, and DMA.
Frequency150MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320R2812ZHHA technical specifications.
General
Package/Case
LFBGA
Data Bus Width
32b
Density
0B
Frequency
150MHz
Interface
I2C, SPI, UART, USART, SCI, EBI/EMI
Lead Free
Contains Lead
Max Frequency
150MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.47V
Memory Type
ROMless,
Min Supply Voltage
1.81V
Mount
Surface Mount
Number of A/D Converters
16
Number of I/Os
56
Number of Programmable I/O
56
Number of UART Channels
2
Operating Supply Voltage
1.9V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA
RAM Size
40KB
RoHS Compliant
Yes
Series
C2000™ C28x Fixed-Point
Weight
0.011916oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320R2812ZHHA Datasheet
Download the complete datasheet for Texas Instruments TMS320R2812ZHHA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

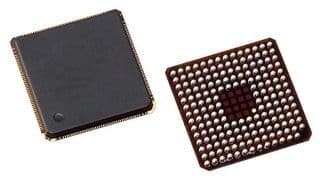

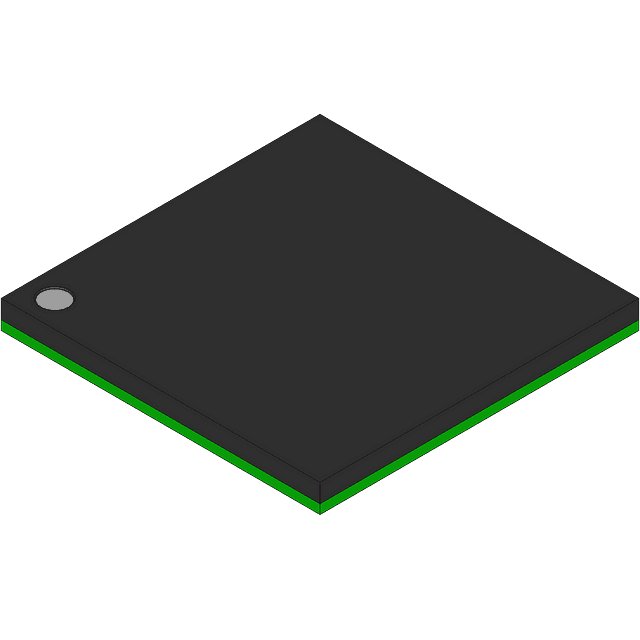

Product Images
