16-bit Digital Signal Processor (DSP) featuring an ARM core architecture operating at 100MHz. This surface mount component, housed in an LFBGA package, offers 144KB of SDRAM and 4KB of memory. It supports I2C, SPI, and 2 UART channels, with 36 programmable I/Os. Operating voltage ranges from 1.71V to 3.6V, with a typical 1.8V.
Frequency100MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320VC5470GHKA technical specifications.
General
| Package/Case | LFBGA |
| Core Architecture | ARM |
| Data Bus Width | 16b |
| Frequency | 100MHz |
| Interface | I2C, SPI, UART |
| Lead Free | Contains Lead |
| Max Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 4KB |
| Memory Type | SDRAM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of I/Os | 36 |
| Number of Programmable I/O | 36 |
| Number of UART Channels | 2 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 90 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 144KB |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | TMS320C54x |
| Weight | 0.020318oz |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments TMS320VC5470GHKA Datasheet
Download the complete datasheet for Texas Instruments TMS320VC5470GHKA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

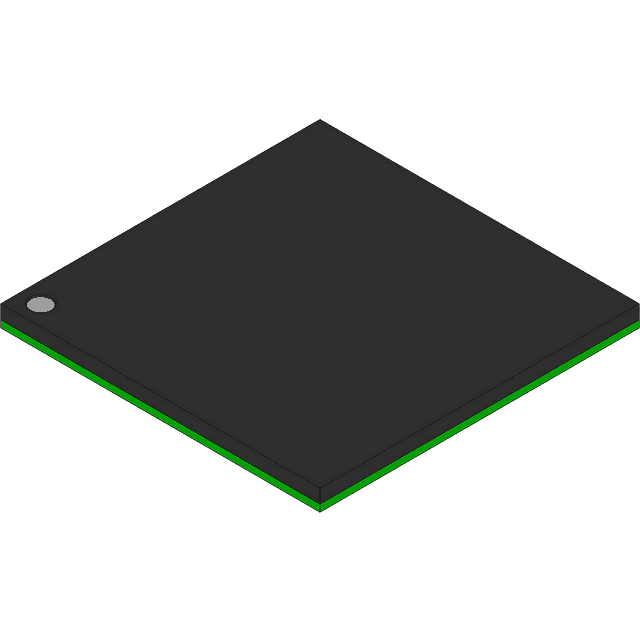

Product Images
