32-bit fixed-point digital signal processor operating at 200MHz, delivering 400MIPS performance. Features 64KB on-chip memory and 256KB RAM, with support for SDRAM and EPROM. Includes I2C and SPI interfaces, one A/D converter, and 8 programmable I/O channels. Packaged in a 179-pin BGA for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency200MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320VC5509AGHH technical specifications.
General
| Package/Case | BGA |
| Core Architecture | TMS320 |
| Data Bus Width | 32b |
| Frequency | 200MHz |
| Interface | I2C, SPI |
| Lead Free | Contains Lead |
| Max Frequency | 200MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.65V |
| Memory Size | 64KB |
| Memory Type | SDRAM, EPROM |
| Min Supply Voltage | 1.55V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 32 |
| Number of Channels | 6 |
| Number of I/Os | 8 |
| Number of Programmable I/O | 8 |
| Package Quantity | 160 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 256KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | TMS320C55x |
| Termination | SMD/SMT |
| Weight | 0.012205oz |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments TMS320VC5509AGHH Datasheet
Download the complete datasheet for Texas Instruments TMS320VC5509AGHH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

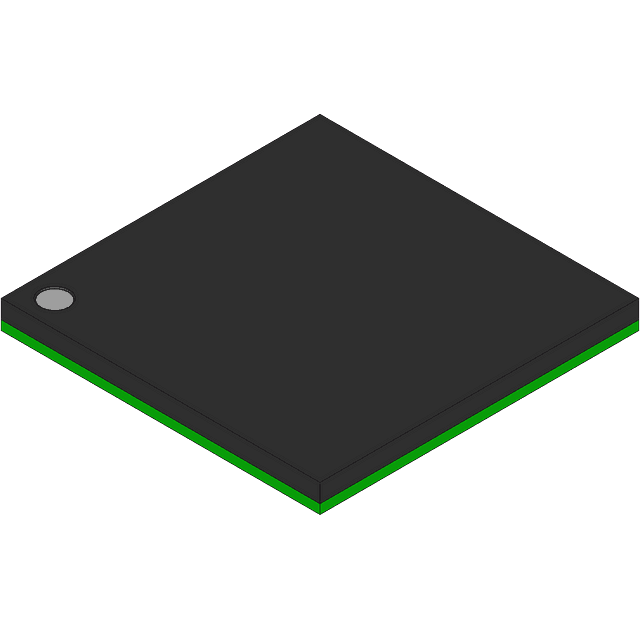

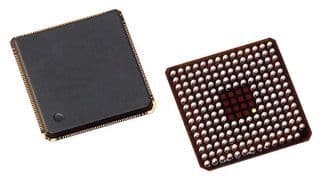

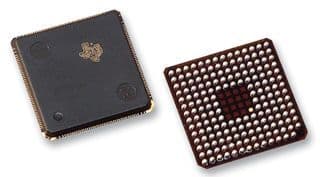

Product Images
